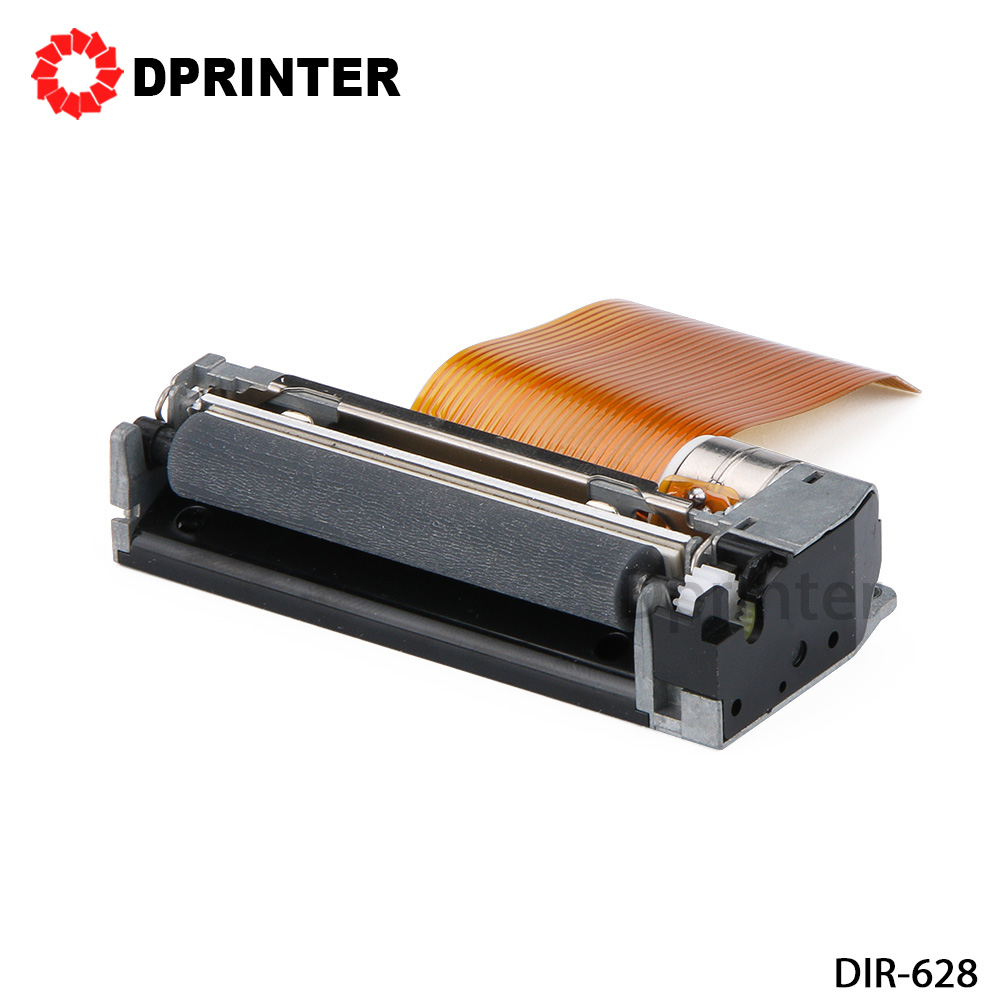

DIR-628(2Inch)Thermal Printer
DIR-628(2Inch)Thermal Printer
It is a small size, wide operating voltage, high efficiency thermal printer mechanism.
The unique easy loading makes it become an ultra compact, reliable and cost-effective
printer mechanism.
Characteristics

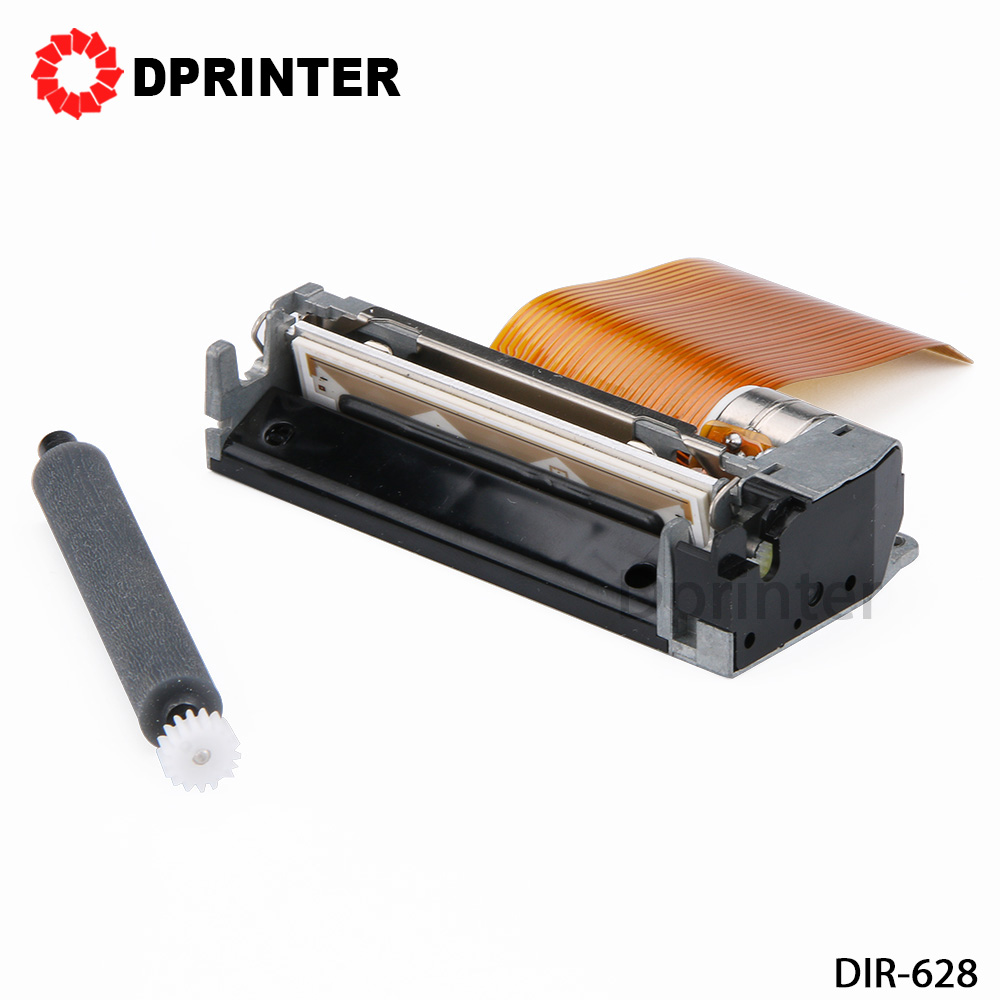

◆ Easy loading paper
◆ Small size, light weight
◆ Metal frame, metal gear shaft, stable, reliable, high life, excellent thermal properties
◆ Print speed（max）: 80 mm / s （at 8.5 V voltage of motor）
◆ Wide operating voltage (4.2 V-8.5V)
◆ High accuracy (8 dots / mm)
◆ Wear life: more than 50 km
◆ Low noise: brushless magnetic incentive step motor; high wear resistance,
composed of resistant to high / low temperature special engineering plastics gears,
makes it has very low noise.
Apply to: ■ Portable printer/terminal
■ EFT
■ Cash register
■ POS
■ Weight machines
■ Medical equipment
Specifications
Print method： Thermal dot line printing
Effective printing width（mm）： 48 ±0.2
Heater resolution（dot/mm）： 8
Printing Dots of per line： 384dots
Paper width (mm) ： 58mm
Dot pitch（mm）: 0.125mm
Dot size: 0.125mm x 0.12mm
Printing speed: 70mm/s（at 8.5 V voltage of motor）
Thermal head temperature detection : Via thermistor
Paper detection: Via photo interrupter
Head working voltage(V): 4.2~8.5V
Logic voltage(V) : 2.7~5.25V
Motor voltage : 4.2~8.5
Operating temperature: +0℃~50℃
Operating humidity: 20%~85%RH
store temperature : -20℃~60℃
store humidity : 5%~95%RH
Machine noise: <60dB
Platen open-close times: >5000 times
Thermal paper traction force: ≥50g
Thermal paper grasp brake force: ≥80g
Wear life: >50km
Electric life: One hundred-million pulses (under ourstandard printing conditions.)
Mass(g): 40.5g
Outline dimension: 72±1.5mm x 33±0.5mm x 15.5±0.5mm(D x W x H)
